System Architecture

Understanding the Live Log Insight system architecture and components.

System Architecture

Live Log Insight is built on a modular, skill-based architecture that enables flexible log analysis workflows.

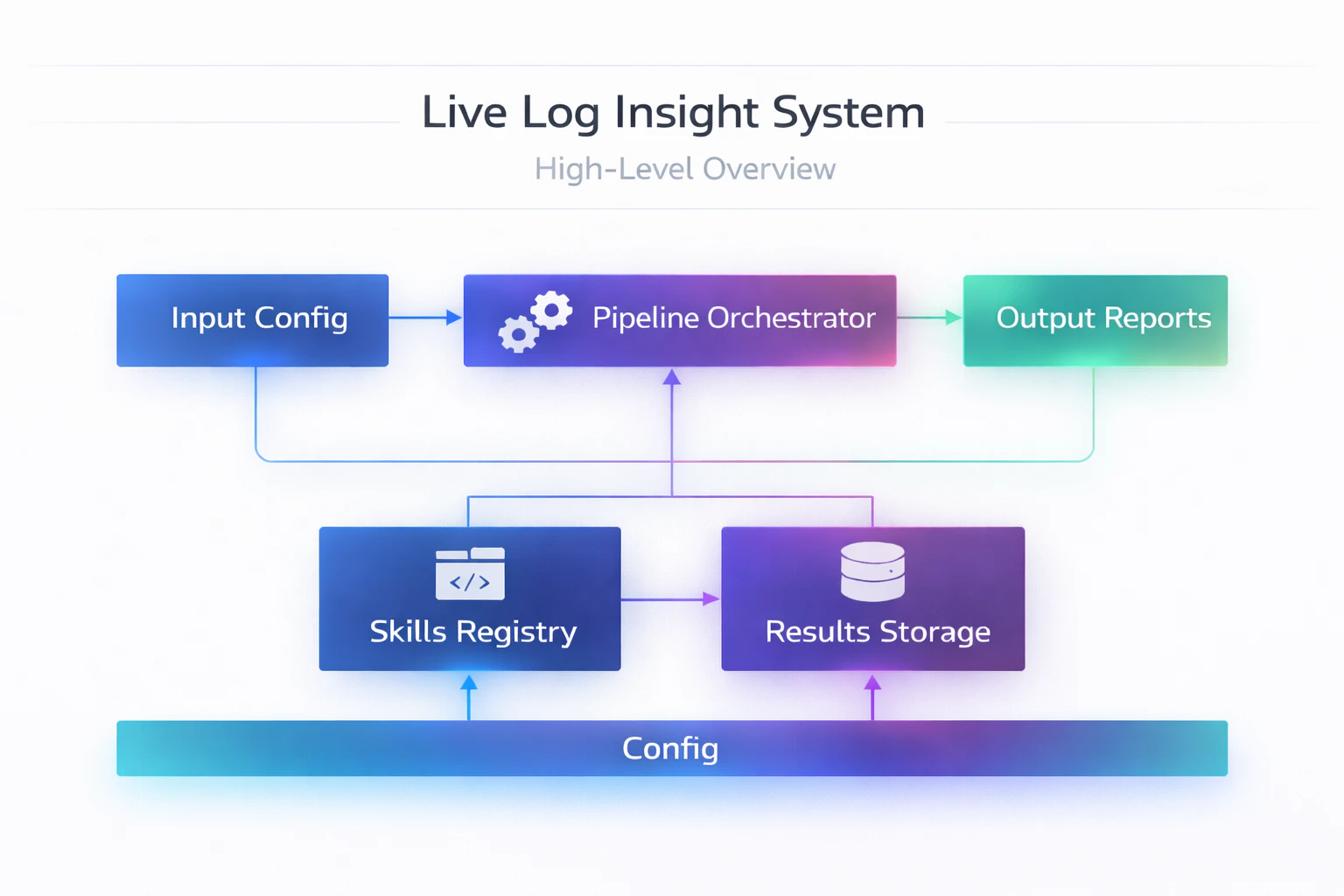

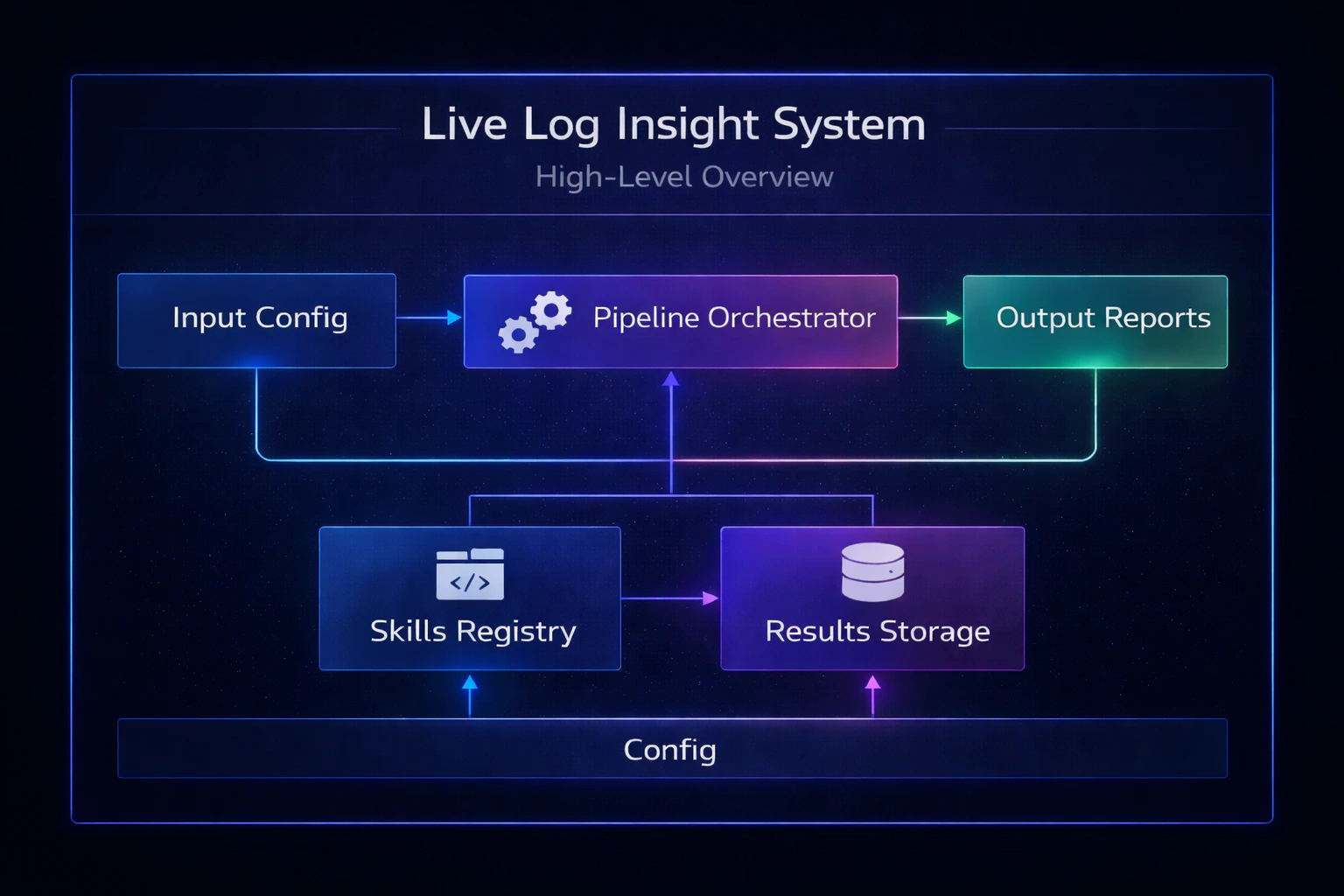

High-Level Overview

Core Components

1. Pipeline Orchestrator

The central component that:

• Loads configuration from config.json
• Manages skill execution order
• Handles data flow between skills
• Manages error recovery

Location: src/agentX/pipeline/pipeline.py

2. Skills Registry

A collection of specialized skills organized by function:

Skill	Purpose	Location
livelogs_insights	Orchestrates end-to-end analysis	.agents/skills/livelogs_insights/
logsource_discovery	Identifies log sources	.agents/skills/logsource_discovery/
fetch_logs	Retrieves raw logs	.agents/skills/fetch_logs/
parse_logs	Normalizes log formats	.agents/skills/parse_logs/
aggregate_logs	Computes metrics	.agents/skills/aggregate_logs/
detect_anomalies	Identifies issues	.agents/skills/detect_anomalies/
high_hypothesis	Root cause analysis	.agents/skills/high_hypothesis/
generate_summary	Creates reports	.agents/skills/generate_summary/
recommend_actions	Suggests next steps	.agents/skills/recommend_actions/

3. Configuration System

Hierarchical configuration management:

config/
├── config.json                          # Main configuration
├── log_sources.yaml                     # Log source definitions
├── log_patterns.yaml                    # Parsing patterns
├── anomaly_thresholds.yaml              # Detection settings
└── baseline_metrics.json               # Historical data

4. Shared Utilities

Common functionality used across skills:

Location: src/agentX/shared/

Module	Purpose
utils.py	Common utility functions
log_schema.py	Standard log format definitions
time_utils.py	Time parsing and formatting
io_utils.py	File I/O operations

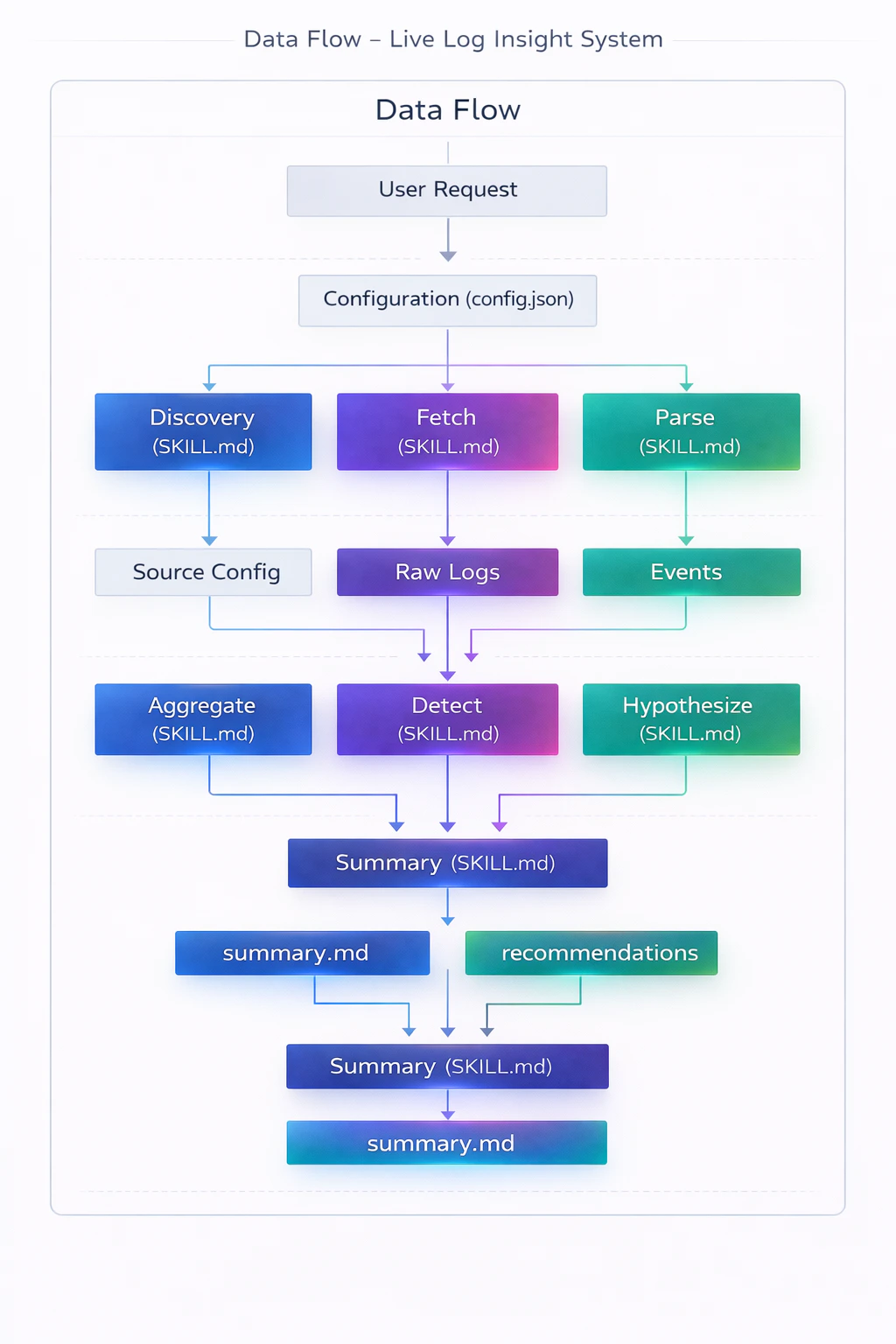

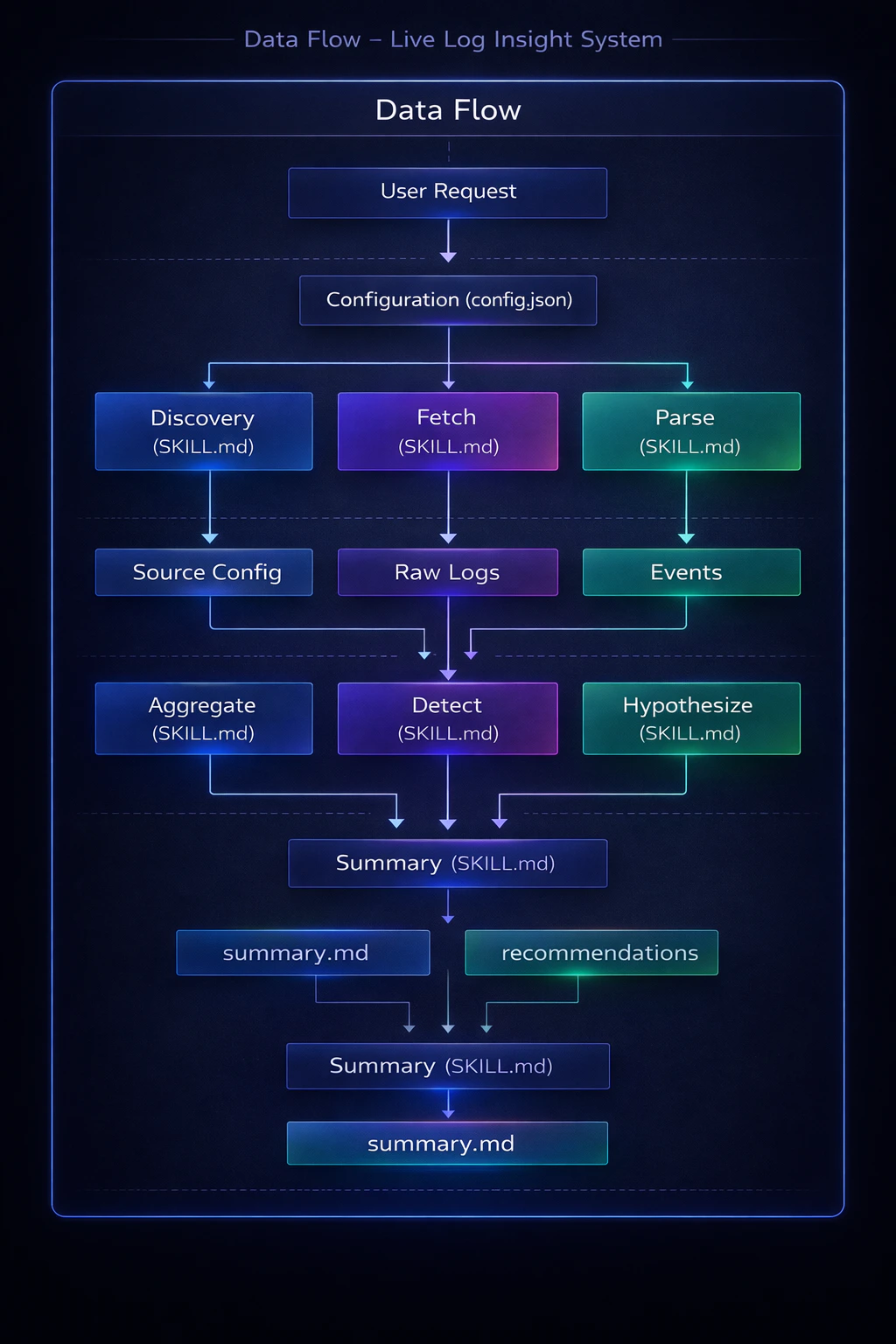

Data Flow

Skill Structure

Each skill follows a consistent structure:

skill-name/
├── SKILL.md              # Required: Instructions + metadata
├── scripts/
│   └── run.py           # Required: Execution script
├── references/           # Optional: Additional documentation
│   ├── REFERENCE.md
│   └── OUTPUT_FORMS.md
├── config/              # Optional: Skill-specific config
│   └── settings.yaml
└── assets/              # Optional: Templates, resources
    └── templates/

SKILL.md Format

---
name: skill-name
description: Brief description of what this skill does.
license: Apache-2.0
metadata:
  author: your-name
  version: "1.0"
  category: observability
  tags: [logs, monitoring]
---

## Instructions

1. Step one
2. Step two
3. Step three

## Outputs

The skill returns structured data:
```json
{
  "result": "value"
}

## Agent Integration

The system uses Agent Skills format (`.agents/AGENTS.md`) for integration:

```markdown
# Live Log Insight Agent

## Overview

This agent analyzes system and application logs...

## Workflow

1. Log Source Discovery → Identify where logs live
2. Log Fetching → Retrieve raw logs
3. Log Parsing → Normalize into structured events
...

## Available Skills

- `logsource_discovery` - Identify log storage locations
- `fetch_logs` - Retrieve logs from sources
- ...
